Leading Technology for Unconventional Oil and Gas Stimulation

Leading Technology for Unconventional Oil and Gas Stimulation
Executive Summary
1. HEP Technology Overview
HEP effectively suspends and distributes proppant within a fiber-stabilized network to enhance fracture conductivity and proppant support efficiency. US Patent 12,371,608
1. Key Technical Advantages
30% increase in proppant carry distance (lab verified)
2 times higher proppant placement height (lab verified)
25% larger stimulated reservoir volume (SRV) (validated by microseismic monitoring)
50% reduction in proppant flowback
1. Business Impact
+18% EUR (≈ 0.11MM bbl per well, based on 0.6MM bbl EUR)
+$7MM revenue per well at $65/bbl
–8% fluid & proppant use, saving ≈ $0.2MM per well
1. Field Application in China
Successfully deployed in 250+ wells across Chinese oilfields over the past 3 years.
3

Slide 4 image

Problems With
Leading Technology for Unconventional Oil and Gas Stimulation
Conventional Proppants
Insufficient Vertical Support: lower placement height;
Insufficient Horizontal Support: the proppant fails to travel far;
Sand flow back into the wellbore seriously: clog and damage the production equipment;

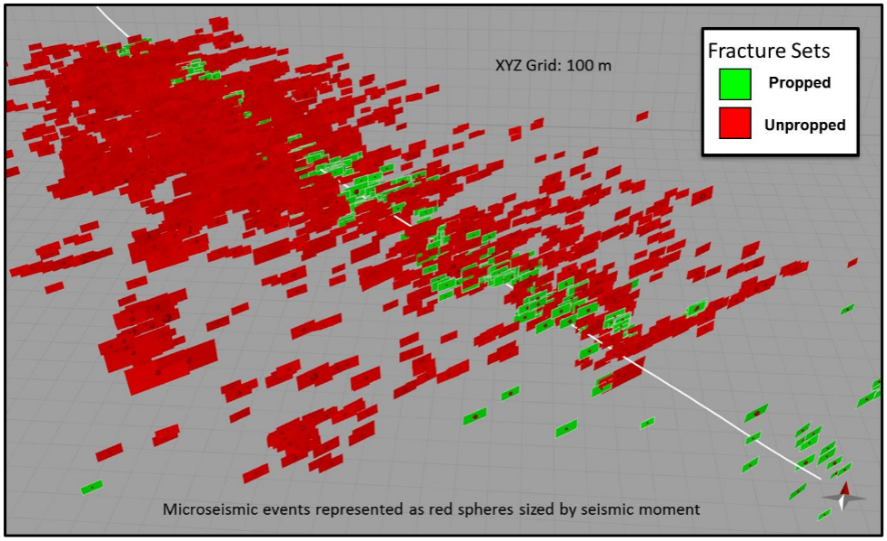

Comparison between dynamic fractures and support fractures in shale oil (Jonathan, SPE169496)

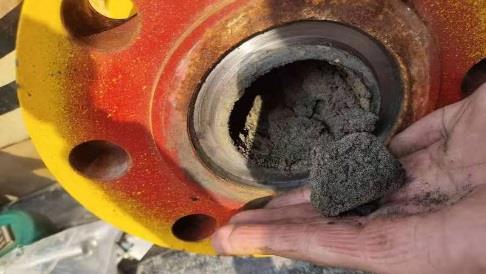

Flowback induced clogging
4

Leading Technology for Unconventional Oil and Gas Stimulation
Platform FY1HF
Geological Conditions
Geologically similar : Pay zone encounter rate, porosity, brittle mineral content and rock mechanics parameters are roughly equivalent.
Shale Oil Case
16

Slide 17 image

Leading Technology for Unconventional Oil and Gas Stimulation
Platform FY1-1HF
Construction parameter and Oil Production
As of February 22, 2025 totally 969 days, FY1-A achieved average oil production of 240bbl, Well FY1-B reached 192.5bbl average. This represents increase 23.4% production.

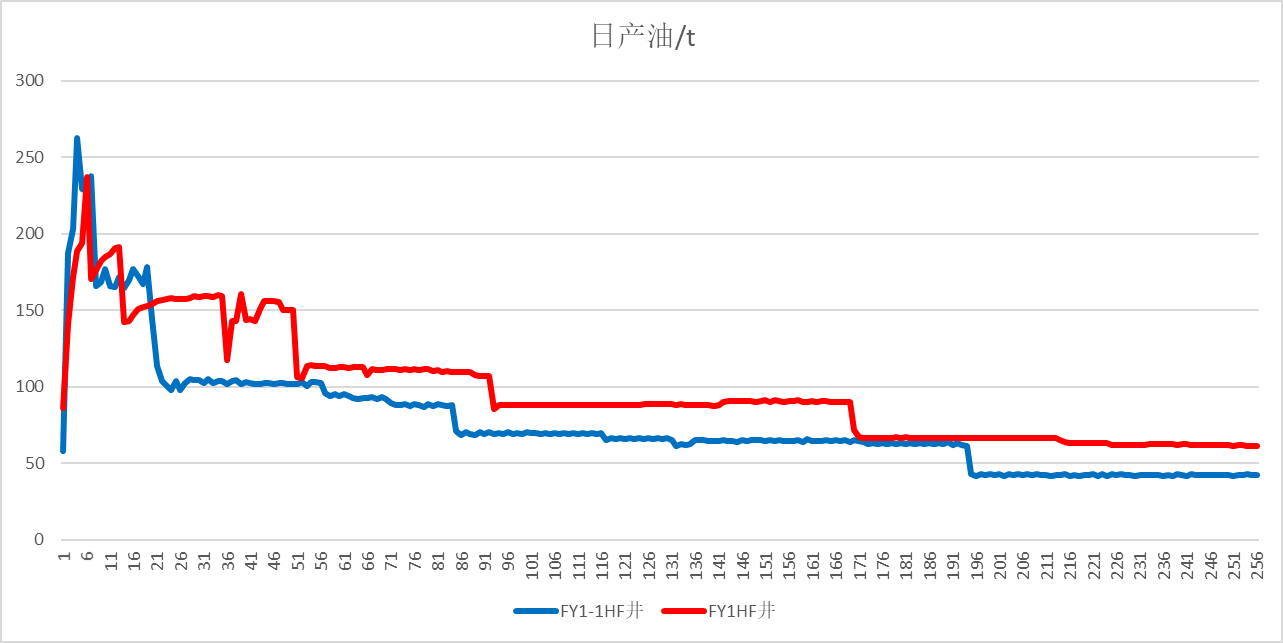

Daily Oil Production Comparison

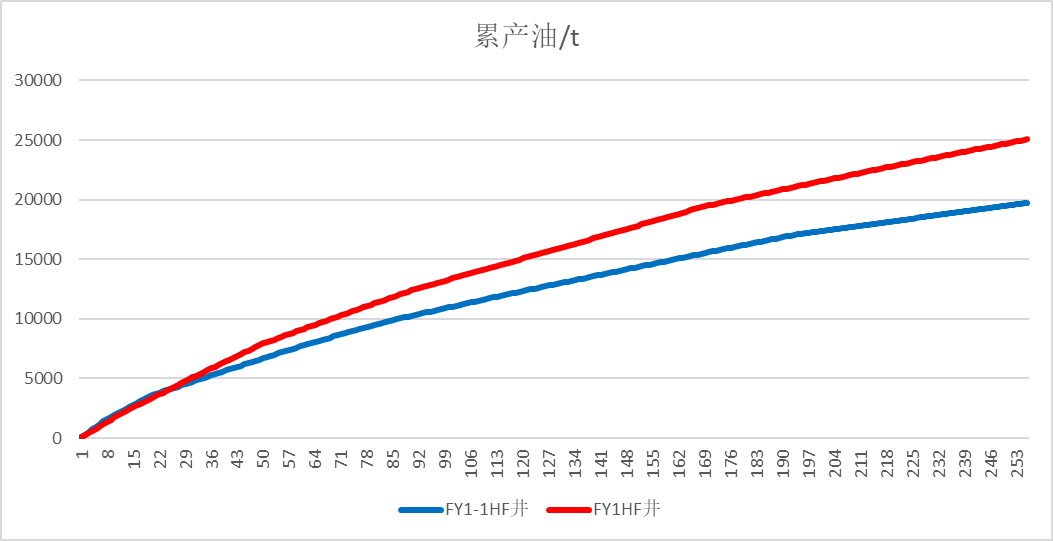

Cumulative Oil Production Comparison
Shale Oil Case
17

Leading Technology for Unconventional Oil and Gas Stimulation
Platform Z201H62
Geological Conditions
4 wells on the platform, vertical depth 3550-3611m: Wells 1&4 with HEP; Well 2&3 with self-suspending proppant.
Geologically similar : Pay zone encounter rate, porosity, brittle mineral content and rock mechanics parameters are roughly equivalent; TOC of Wells 1&4 is poorer than 2&3; Well 4 has slightly longer encounter length.
Shale Gas Case 1
18

Leading Technology for Unconventional Oil and Gas Stimulation
Platform Z201H62
Process Design
HEP process ran smoothly, with 98% design compliance.
70/140 mesh quartz sand stage: Modified fiber injection concentration 0.2–0.4%, structural stabilizer 0.3%;
40/70 mesh stage: Modified fiber 0.3%, structural stabilizer 0.3%.
1, 3: Proppant modified fiber concentration 0.2~0.4%, stabilizer 0.3%
2, 4: Proppant modified fiber concentration 0.3%, stabilizer 0.5%
+Modified fiber]
19

Leading Technology for Unconventional Oil and Gas Stimulation
Platform Z201H62
Application Effect
Production results: Wells 1 & 4 using HEP technology achieved 24.7% and 20% higher cumulative production per km than Well2& 3.
*Disp: Displacement;
OP: Oil pressure;
DGP：Daily gas production;
PD: Production days；
CGP: Cumulative gas production；
CGP/ft: Cumulative gas production per foot；
GPIR/ft: Gas Production: Increase rate per ft.
Production status of each well on Z201H62 Platform
20

Leading Technology for Unconventional Oil and Gas Stimulation
Cost Curve: Higher for the First Well, Declining with Scale
Well numbers and price
We offer the best price in initial cooperation, with additional discounts as the number of wells increases.
21

Leading Technology for Unconventional Oil and Gas Stimulation
Executive Summary
1. HEP Technology Overview
HEP effectively suspends and distributes proppant within a fiber-stabilized network to enhance fracture conductivity and proppant support efficiency. US Patent 12,371,608
1. Key Technical Advantages
Increases proppant carry distance by 50%;
Doubles proppant placement height;
Expands stimulated reservoir volume (SRV) by 25%;
Reduces proppant flowback by 50%;
1. Business Impact
Increases an average 18% in EUR;
Based on the standard EUR 0.6MM bbl, achieves additional 0.11MM bbl per well;
At the oil price of $65/bbl, increases revenue of around $7MM per well;
Achieves 8% reduction in fluid and proppant usage, saving around $0.2MM per well;
1. Field Application in China
Successfully deployed in 250+ wells across Chinese oilfields over the past 3 years.
